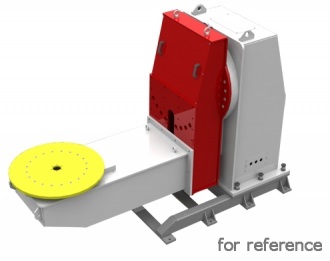

L Type Positioner


Programmable external axes, rotating to turn work-piece to best welding position for best welding effect

Applications

Truck Crane Components
Pump Truck Components
  • Robot external axes, programmable, matching with robot. Servo motor drives reducer by special no-gap gear driving technology.
  • >> Data will be enter..
  • HDS10 HDS25 HDS50
    Small Rotary
    Max. Speed 63°/sec 42°/sec. 20°/sec.
    Payload 1000 kg 2500 kg 5000 kg
    Max. Output Torque 1700 Nm 4300 Nm 12500 Nm
    Max. rotary diameter   2600 mm
    Max. Eccentricity 170mm 172mm 250mm
    Rotation Angle ±185° ±185° ±185°
    Repeatability ±1.5 arc min ±1.5 arc min ±1.5 arc min
    Big Rotary
    Max. Speed 16°/sec. 12°/sec.
    Payload 5000 kg 20000 kg
    Max Output Torque 21000 Nm 40000 Nm
    Max Rotary Diameter 1380 mm
    Max. Eccentricity 210mm 200mm
    Rotation Angle ±185° ±185°
    Repeatability ±1.5 arc min ±1.5 arc min
